Range Hood Series OEM Wall‑Mount Under‑Cabinet Island Vestar

Complete Range Hood Series – UL/ETL Certified, 120V/60Hz

Title: Wall‑Mount / Under‑Cabinet / Island – One Source for All

Model Series	Installation	Width	CFM Range	Key Features	Target Buyer

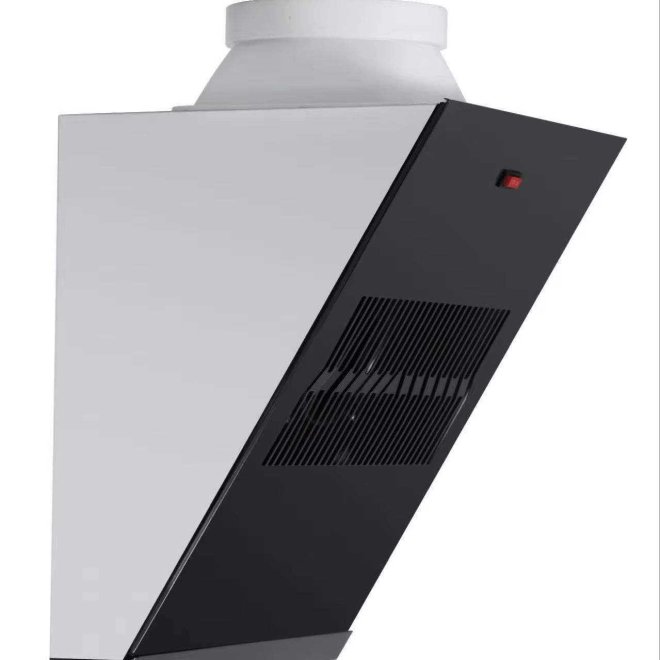

VRH‑Wall	Wall‑mount / chimney	30", 36"	400–900	Tempered glass, baffle filters, LED, touch/remote control, smart options	Homeowners, kitchen renovators, mid‑tier to premium projects

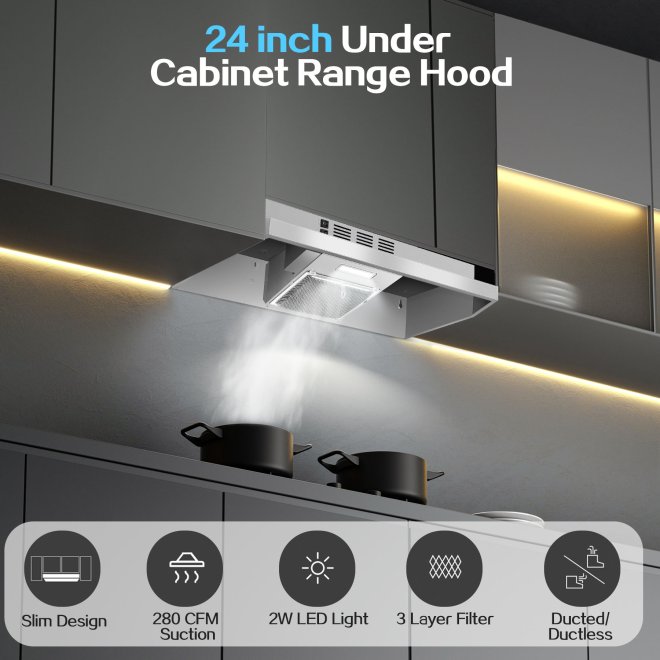

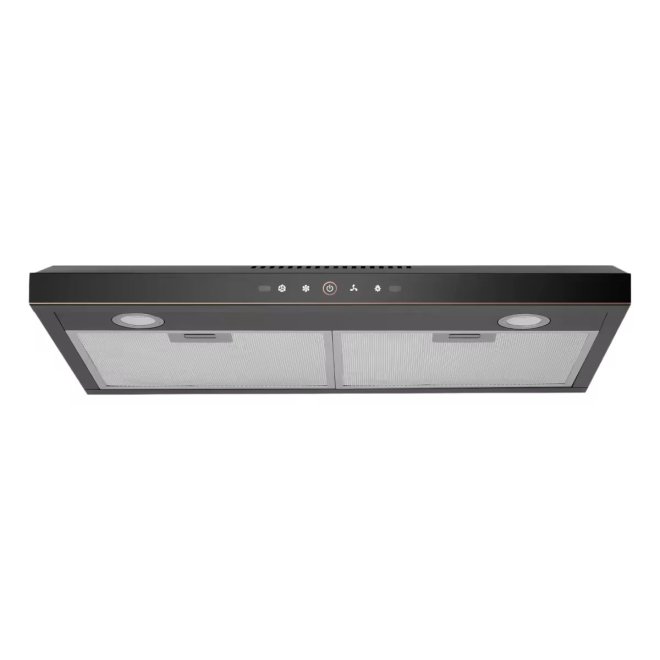

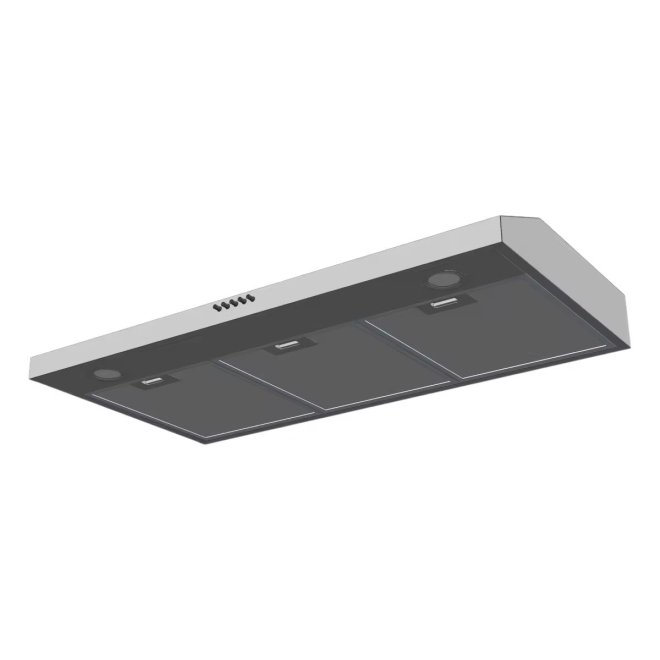

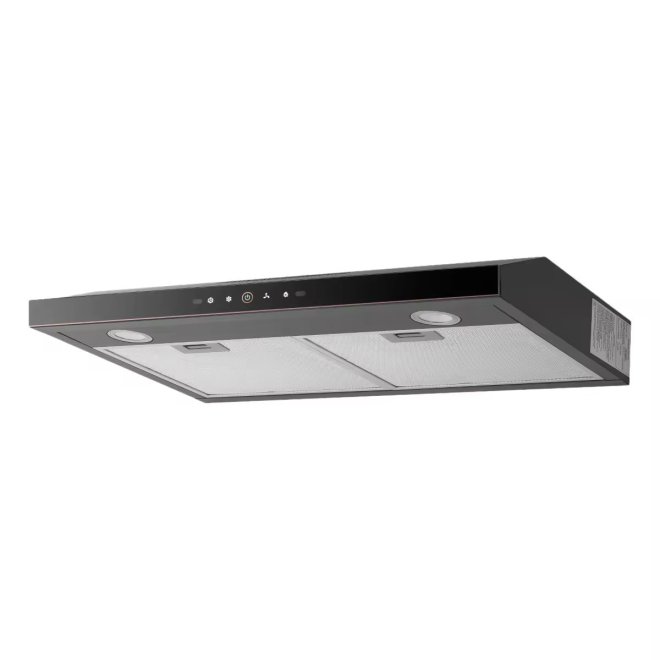

VRH‑Under	Under‑cabinet	24", 30", 36"	300–600	Push‑button or electronic, mesh/baffle filters, convertible ducting	Builders, property managers, apartments, entry‑level and rental markets
VRH‑Island	Ceiling / island	36", 42", 48"	500–1,200+	360° capture, stainless steel or glass, remote control, high CFM for open kitchens	Luxury homes, custom projects, large islands, open‑concept kitchens

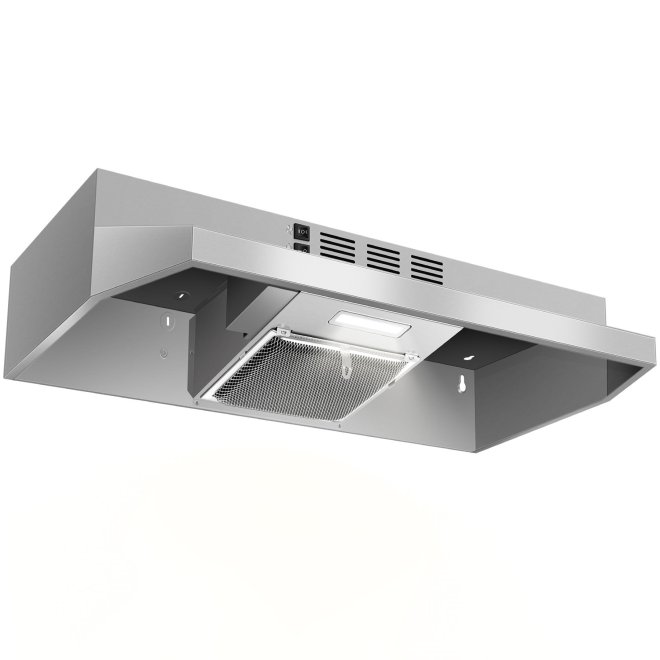

VRH‑Insert	In‑cabinet / under‑cabinet	30", 36"	400–1,200	Stainless steel, concealed design, remote blower ready, seamless integration	Kitchen designers, custom cabinetry, high‑end integrators

UL/ETL certified – full compliance with UL 507 safety standard for electric fans
120V/60Hz – North American standard household voltage
DOE test compliant – meets US Department of Energy fan efficiency test procedures
Energy Star – available on select high‑efficiency models
20 years OEM/ODM experience – consistent quality, custom options, reliable supply

Inquiry now

Product Details
FAQ
Inquiry Now
Product Evaluation
You May Like

Product Details

North America Market – Steady Growth Driven by Renovation and Air Quality Awareness

The North America range hood market continues to expand steadily. It was valued at approximately $3.86 b i l l i o n i n 2024 * * a n d i s p r o j e c t e d t o r e a c h * *$ 5.21 billion by 2030, growing at a CAGR of 5.19%. Under a different measurement, the market was valued at $3.3 b i l l i o n i n 2024 * * a n d i s p r o j e c t e d t o g r o w a t a C A G R o f * * 6.8$ 6.3 billion by 2034.

Driver	Impact
Home renovation activity	Kitchen remodeling and aging housing stock drive demand for stylish, efficient ventilation upgrades.
Open‑concept kitchens	Heightened need for high‑CFM, low‑noise hoods to prevent smoke and odors from spreading.
Federal incentives (Inflation Reduction Act)	Rebates for energy‑efficient appliances encourage adoption of eligible range hoods.
Indoor air quality regulations	ASHRAE 62.2 and EPA guidelines promote high‑CFM ducted hoods to reduce cooking pollutants.
Smart home adoption	Over 80% of US households expected to adopt energy‑efficient appliances by 2025, boosting demand for smart, connected hoods.

The wall‑mount segment led the market in 2024, generating $1.1 billion, driven by their space‑saving design and compatibility with open‑plan layouts. The residential segment held a dominant 76.3% share in 2024 and is projected to grow at a CAGR of 6.9% through 2034.

Intelligent Range Hood Market – Growth Driven by Smart Kitchen Adoption

The intelligent (smart) range hood market is growing even faster than the overall category. It was valued at approximately $2.1 b i l l i o n i n 2024 * * a n d i s p r o j e c t e d t o r e a c h * *$ 4.5 billion by 2035, growing at a CAGR of 7.1%. Other estimates place the market at $3.5 b i l l i o n i n 2024 * *, p r o j e c t e d t o r e a c h * *$ 6.8 billion by 2033 at a CAGR of 8.3%.

Smart Feature	Benefit
Wi‑Fi, app & voice control	Remote operation, real‑time monitoring, software updates
AI‑powered odor detection & adaptive fan	Automatic adjustments based on cooking levels
SmartThings, Google Home, Alexa	Seamless integration with broader smart home ecosystem
Air quality & energy monitoring	Real‑time data and energy savings via lower idle consumption

Choosing the Right CFM – Sizing Guidelines

Sizing Factor	Rule of Thumb
Electric / Induction cooktop	100 CFM per 12 inches of cooktop width → 30″ electric = 300 CFM minimum
Gas range	1 CFM per 100 BTUs of total burner output → 60,000 BTU gas range = 600 CFM minimum
Island cooktop	Add 25% → standard 600 CFM → 750 CFM minimum (due to 360° exposure)
Ductwork impact	Long or narrow ducts require +10–20% CFM to compensate for static pressure
High‑output pro ranges	Rule: 100 CFM per 10,000 BTUs → 80,000 BTU range = 800 CFM minimum

Regulatory Compliance – What B2B Importers Must Know

Regulation	Effective Date	Requirement	Our Compliance
UL 507	Ongoing	Mandatory safety test for electric fans – covers electrical, mechanical, and material requirements up to 600V	✓ Full‑line certified; test reports available
UL 60730	Ongoing	Safety standard for automatic electrical controls (smart/WiFi models)	✓ Available on request for smart models
DOE fan test procedures	July 16, 2025 – performance testing mandatory; DOE withdrew broader fan efficiency rule in 2025, but testing requirements remain	All models tested under updated methods
DOE cooking products	Proposed rule (ongoing)	New DOE standards to improve kitchen appliance efficiency, including range hoods	All models designed to exceed expected minimums
Energy Star	Voluntary	Min 2.8 CFM/W efficacy and max 2.0 sones for range hoods ≤75W	Available on select high‑efficiency models
Title 24 (California)	Existing	Compliant range hoods for electric ranges qualify for certain energy programs	✓ Available on request

Selection by Target Channel

Channel / Application	Recommended Model Series	CFM	Why
New construction (multi‑family / entry)	VRH‑Under	300–400	Low cost, simple controls, standard widths, no plumbing
Homeowner / renovation (mid‑tier)	VRH‑Wall	400–600	Glass/stainless finishes, baffle filters, remote option, Energy Star ready
Premium / luxury remodel	VRH‑Wall or VRH‑Island	600–1,200+	High CFM, full glass or stainless, smart features, low noise
Custom cabinetry / high‑end builder	VRH‑Insert	600–1,200+	Concealed design, remote blower, seamless flush integration
Apartment / Airbnb / property manager	VRH‑Under or VRH‑Wall (budget)	300–400	Durability, convertible ducting (recirculating option)

Product Specifications – Key Factors

Feature Area	Options	Benefit
Filtration	Baffle filters (stainless) – high grease capture, dishwasher‑safe, premium Mesh filters (aluminum) – economical, dishwasher‑safe, entry‑level Charcoal filter – optional for recirculating / ductless installations	Range of price / performance points

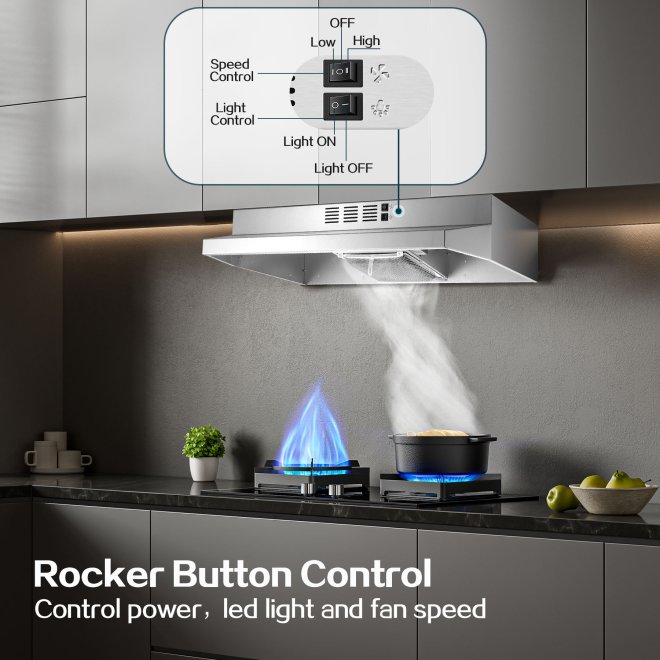

Controls	Mechanical / push‑button – simple & durable, rental‑grade Electronic / soft‑touch – timer, delay‑off, 3–4 speeds Touch + remote / WiFi – app control, voice assistant (Alexa/Google), real‑time monitoring	Flexibility for every budget
Materials	Tempered glass – modern design Stainless steel – classic durable finish Combination – glass + stainless for high‑end models	Aesthetic variety for all kitchen styles
Lighting	LED only – standard across all models Wattage – 2–4 LED fixtures (bright, long‑lasting, energy‑efficient)	Improved cooking visibility

Why North American Partners Choose Vestar

Complete four‑series coverage – wall‑mount, under‑cabinet, island, and insert; all from a single manufacturing source
Mixed‑model MOQ – 1 × 40HQ container, combine any models, reduce procurement complexity
Regulation ready – UL/ETL certified (UL 507), DOE test‑method compliant, Energy Star options for eligible high‑efficiency models
Electrical compatibility – 120V/60Hz standard US/CA voltage (208‑240V for larger inline remote blowers)
Low failure rate – rigorous multi‑point QA; industry‑leading reliability
OEM/ODM ready – custom branding, pantone color matching, custom packaging, localized manuals (EN/FR/ES)
After‑sales support – technical documentation, spare parts coordination (0.5% of FOB quantity), remote service guidance

MOQ: 1 × 40HQ (mixed models)
Lead time: 35‑45 days after deposit
Payment: T/T (30% deposit, 70% balance against B/L) or L/C at sight

FAQ

01.Price Validity & Adjustments
- Q: Are your quoted prices fixed permanently?A: Our quotes have a specific validity period. Since we aim to provide the most competitive pricing, we reserve the right to adjust prices if the exchange rate fluctuates by more than 2% or if raw material prices increase by more than 2%.
- Q: Is the OEM service fee a recurring cost?A: No, the $300 per model OEM service fee is a one-time charge, and it only needs to be paid during your first order.
02.Product Range & Categories
- Q: What types of home appliances do you manufacture?A: Our extensive product range covers kitchen appliances (range hoods, induction cookers, refrigerators, freezers), air conditioning & refrigeration, and cleaning & care series (washing machines, clothes dryers, dishwashers).
- Q: Do you offer smart home appliances?A: Yes, we offer an optional smart home appliance series featuring integrated smart control for air conditioners, washing machines, and refrigerators.
03.Customization & Design Services
- Q: What kind of customization services do you offer?A: We support full-dimensional customization, including product appearance (colors, sizes, logos), functional features (energy efficiency ratings, special scenario adaptations), and packaging designs (materials, labels, accessories).
- Q: Can you help design packaging for our local market?A: Yes, we provide appearance, function, and packaging design services specifically tailored to meet the diverse demands of different regional markets globally.
